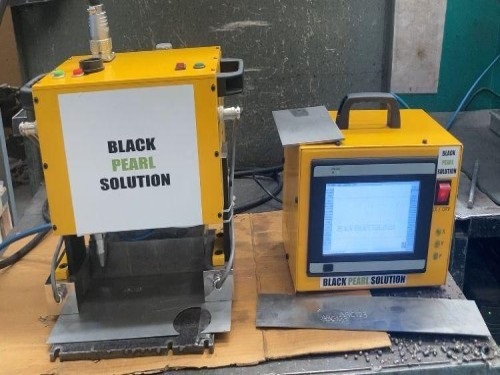

Chesis Marking Machine DPB403

135184.0 INR/Piece

Minimum Order Quantity : 1 Pieces

Delivery Time : 2 Days

Get a Price/Quote

Request To Call Back

Chesis Marking Machine DPB403 Price & Specifications

Width 15 Centimeter (cm)

Weight 15 Kilograms (kg)

Warranty one year

Usage Marking on metal Component

Product Type Dot Pin Marking Machine

Power 220 Volt (v)

Marking Speed 300mm mm/m

Marking Area 150*150

Length 15 Centimeter (cm)

Height 15 Centimeter (cm)

Dimensions 15 Centimeter (cm)

Cooling Mode Air Cooling

Control Software Cad control Software

Condition New

Color Yellow

CNC No

Accuracy 0.002 %

Supply Ability 5 Per Week

Sample Policy Contact us for information regarding our sample policy

Sample Available No

Payment Terms Cash Advance (CA), Cash in Advance (CID)

Main Domestic Market All India

Delivery Time 2 Days

About Chesis Marking Machine DPB403 Detail

Technical Specification

Model Available - DPB 401 / 402 Column Based table top Model or Portable

Marking Speed - 2-5 characters (2x2mm/Sec)

Marking Depth - 0.1 - 1.0 mm

Model Type - Pneumatic / Electronic

Impact Freq. - 300 Times / Sec

Marking Area -100 * 50 mm to 200 * 200 mm

Marking Depth - 0.1mm to 1mm

Air Pressure Req. - 0.5 to 0.6 Mpa

Software - Software control with Touch Screen or PC based

Advanced Marking Precision

Delivering exceptional marking accuracy, the Chesis DPB403 assures clear and permanent impressions on metal components. Its 0.002% accuracy makes it suitable for applications where precision is critical, such as serial number and code engraving in manufacturing settings.

Portable and User-Friendly Design

Weighing only 15 kilograms, the DPB403 is designed for portability, making it convenient for on-site usage. The air cooling system maintains efficient operation without the need for liquid coolants, ensuring a clean and consistent marking process.

Simple Control with CAD Software

The machine is managed through dedicated CAD control software, allowing users to easily create and execute detailed marking patterns. This control streamlines the workflow and enhances versatility for different marking requirements.

FAQs of Chesis Marking Machine (Portable) DPB403:

Q: How does the Chesis DPB403 marking machine operate for metal marking applications?

A: The Chesis DPB403 utilizes CAD control software to guide the marking head, achieving precise markings on metal components. The air-cooling system maintains optimal performance during continuous use.

Q: What makes the DPB403 suitable for portable marking requirements?

A: With a weight of only 15 kg and a compact form factor, the DPB403 is easily transportable, making it ideal for on-site and workshop marking needs.

Q: When is air cooling advantageous in the marking process?

A: Air cooling in the DPB403 provides efficient thermal management, reducing maintenance demands and eliminating the need for liquid coolants during prolonged marking sessions.

Q: Where can this marking machine be used most effectively?

A: The DPB403 performs best in industrial environments such as fabrication workshops or manufacturing units where precise marking on metal components is required.

Q: What is the process for controlling the DPB403 during operation?

A: Users operate the DPB403 through integrated CAD control software, which allows straightforward setup, design creation, and real-time control over the marking process.

Q: How does using this machine benefit manufacturers?

A: Manufacturers gain from its high precision, easy portability, and user-friendly software, which together boost productivity and ensure consistent, high-quality markings on metal parts.
